VORTEX INHIBITORS-ANTI VORTEX PLATES-ANTI VORTEX ASSEMBLY

 VORTEX INHIBITORS-ANTI VORTEX PLATES-ANTI VORTEX ASSEMBLY, TECHNOSMITHS, WORLDWIDE EXPORTERS OF QUALITY STAINLESS STEEL VORTEX INHIBITORS, ANTI VORTEX PLATES AND SYSTEMS FOR VORTEX PREVENTION. OUR STAINLESS STEEL ANTI VORTEX PLATE IS MANUFACTURED IN CERTIFIED GRADE 304 OR 316 STAINLESS STEEL AS MAY BE SPECIFIED BY THE CONSULTANTS. ALTERNATE IS OUR HOT DIP GALVANIZED ANTI VORTEX PLATE OR VORTEX INHIBITOR WHICH IS MANUFACTURED USING QUALITY ASTM A 36 STEEL AND GALVANIZING TO BS-729.

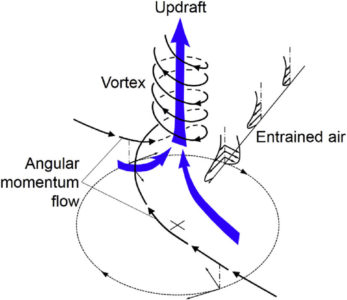

STAINLESS STEEL ANTI VORTEX PLATE  SUPPLIERS or The Vortex Inhibitor is a specialized pipe fitting used to prevent initiation of a vortex within fire suction tank and air entrapment into the suction pipes. The Vortex Inhibitor is fitted to the port of suction pump inlet to eliminate Vortex formation inside the water tank and ensure continued suction. This ensures pump working at its maximum efficiency, greatly minimizing the air entrapment or cause cavitation. This allows the maximum possible draw down of the liquid’s surface level and ensures the largest flow rate transmission.

FOR YOUR NEXT REQUIREMENT OF STAINLESS STEEL ANTI VORTEX PLATE SUPPLIERS IN SAUDI ARABIA, OMAN, KUWAIT, BAHRAIN OR DOHA QATAR PLEASE CONTACT US AT:

WORLDWIDE EXPORTS: WE OFFER WHOLESALE PRICES TO TANKS AND FIRE TANKS MANUFACTURERS WORLDWIDE. SPECIAL OFFER FOR SECTIONAL TANKS MANUFACTURERS FOR BULK ORDERS OF VORTEX PLATES.

Cell: 058 101 6267

WhatsApp: 050 632 8990

Phone:06 743 9209

info@bakjam.com

www.bakjam.com

Compact Design.

VORTEX INHIBITORS-ANTI VORTEX Lightweight and Robust Construction. Reliable performance with no maintenance required Suitable for suction lift or positive head condition Prevent air entrapment, forming of vortex and air entry to pump Improve pump efficiency and prevent potential damage Maximize tank’s effective water storage capacity Cost savings – Option for tank to be sized smaller Made from Galvanized Carbon Steel or Stainless steel Flange connection to BS 10 Table E

STAINLESS STEEL AND CARBON STEEL VORTEX PLATE SUPPLIERS TO SAUDI ARABIA, OMAN, KUWAIT, BAHRAIN, DOHA QATAR AND WORLDWIDE EXPORTS

STAINLESS STEEL VORTEX PLATE SUPPLIERS IN SAUDI ARABIA, OMAN, KUWAIT, BAHRAIN, DOHA QATAR AND WORLDWIDE EXPORTS

STAINLESS STEEL VORTEX INHIBITORS SUPPLIERS IN SAUDI ARABIA, OMAN, KUWAIT, BAHRAIN, DOHA QATAR AND WORLDWIDE EXPORTS

1.Design and manufacture complies with BS EN 12845, the minimum dimension from the vortex upper face of plate to the low water level may  be reduced to 100mm

2 Reducing the risk of vortices formation during the pump suction.

3. Air entraPment and its resultant choking effect on full flow discharge is eliminated whilst potential damage to booster pump equipment, through over speeding, is safeguarded.

4 Solid and compact structure, economic installation and free of maintenance

5 Plate made from 304 steel, corrosion resistance and long life service for more than 10 years

6 Conforming to the sanitation requirement of GB/T 17219

7 Filter is optional to provide

TECHNICAL STUDY PAPERS ON ANTI VORTEX DESIGN AND APPLICATION :

https://scholar.google.ae/scholar?q=vortex+inhibitor+DESIGN+GUIDELINES&hl=en&as_sdt=0&as_vis=1&oi=scholart

https://www.intechopen.com/books/vortex-dynamics-theories-and-applications/application-of-vortex-control-principle-at-pump-intake
