STAINLESS STEEL ANTI VORTEX PLATE DOHA QATAR



TECHNOSMITHS MANUFACTURE QUALITY STAINLESS STEEL ANTI-VORTEX PLATE DOHA QATAR, VORTEX INHIBITORS, ANTI VORTEX PLATES AND SYSTEMS VORTEX PREVENTION. OUR STAINLESS STEEL ANTI VORTEX ASSEMBLY IS MANUFACTURED IN CERTIFIED GRADE 304 OR 316  AS MAY BE SPECIFIED BY THE CONSULTANTS. ALTERNATE IS OUR HOT DIP GALVANIZED ANTI VORTEX ASSEMBLE OR VORTEX INHIBITOR WHICH IS MANUFACTURED USING QUALITY ASTM A 36 STEEL AND GALVANIZING TO BS-729. PLEASE CONTACT US FOR FURTHER INFORMATION:

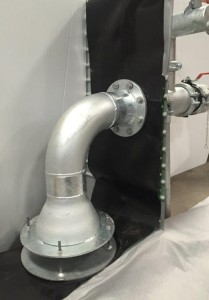

STAINLESS STEEL ANTI VORTEX PLATE  DOHA QATAR or The Vortex Inhibitor is a specialized pipe fitting used to prevent initiation of a vortex within fire suction tank and air entrapment into the suction pipes. The Vortex Inhibitor is fitted to the port of suction pump inlet to eliminate Vortex formation inside the water tank and ensure continued suction. This ensures pump working at its maximum efficiency, greatly minimizing the air entrapment or cause cavitation. This allows the maximum possible draw down of the liquid’s surface level and ensures the largest flow rate transmission.

FOR YOUR NEXT REQUIREMENT OF STAINLESS STEEL ANTI VORTEX PLATE DOHA QATAR PLEASE CONTACT US AT:

Cell: 058 101 6267

WhatsApp: 050 632 8990

Phone:06 743 9209

info@bakjam.com

www.bakjam.com

TECHNOSMITHS MANUFACTURE QUALITY STAINLESS STEEL ANTI-VORTEX PLATE DOHA QATAR

TECHNOSMITHS MANUFACTURE QUALITY STAINLESS STEEL ANTI-VORTEX PLATE DOHA QATAR, VORTEX INHIBITORS,

Compact Design.

Lightweight and Robust Construction. Reliable performance with no maintenance required Suitable for suction lift or positive head condition Prevent air entrapment, forming of vortex and air entry to pump Improve pump efficiency and prevent potential damage Maximize tank’s effective water storage capacity Cost savings – Option for tank to be sized smaller Made from Galvanized Carbon Steel or Stainless steel Flange connection to BS 10 Table E





1.Design and manufacture complies with BS EN 12845, the minimum dimension from the vortex upper face of plate to the low water level may  be reduced to 100mm

2 Reducing the risk of vortices formation during the pump suction.

3. Air entrainment and its resultant choking effect on full flow discharge is eliminated whilst potential damage to booster pump equipment, through over speeding, is safeguarded.

4 Solid and compact structure, economic installation and free of maintenance

5 Plate made from 304 steel, corrosion resistance and long life service for more than 10 years

6 Conforming to the sanitation requirement of GB/T 17219

7 Filter is optional to provide



TECHNICAL STUDY PAPERS ON ANTI VORTEX DESIGN AND APPLICATION :

https://scholar.google.ae/scholar?q=vortex+inhibitor+DESIGN+GUIDELINES&hl=en&as_sdt=0&as_vis=1&oi=scholart

https://www.intechopen.com/books/vortex-dynamics-theories-and-applications/application-of-vortex-control-principle-at-pump-intake
