Laser industrial refrigeration chiller CWFL-1500 is produced by Guangzhou Teyu Electromechanical Co., Ltd. For over 16 years in screening and training, we integrate lots of superior components suppliers. Our brands “S&A” and “TEYU” have gained approval and trust from thousands of manufacturer at home and abroad which enables our product export rate maintained at over 60% in long-term.
CWFL-1500 is special for cooling 1500W metal fiber laser cutting & engraving machine.
S&A dual temperature chiller model CWFL-1500 is high-precision compression refrigeration industrial cooling system, with intelligent temperature control, completed configuration, perfect protection and alarm system. It is applied for cooling 1500W fiber laser. S&A CWFL-1500 is able to cool the fiber laser and QBH connector at the same time, multiple use for saving cost, space and manual move, quite convenient for the user. S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes. CWFL-1500 chiller features:
1. 5100W cooling capacity; optional environmental refrigerant; 2. ±0.5℃ precisely temperature control; 3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions; 4. Dual temperature to satisfy different needs of fiber laser device and the lens; 5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements; 6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm; Water chiller parameter:
Voltage:220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a
Pump power: 0.55KW; Tank capacity:15L
Max. lift:45M; Max. flow: 70L/min
N.W: 86Kgs; G.W: 96Kgs;
Dimension : 78 X 47 X 89 cm (L X W X H); Packing dimension: 87 X 60 X 109 cm(L X W X H)
About S&A Brand

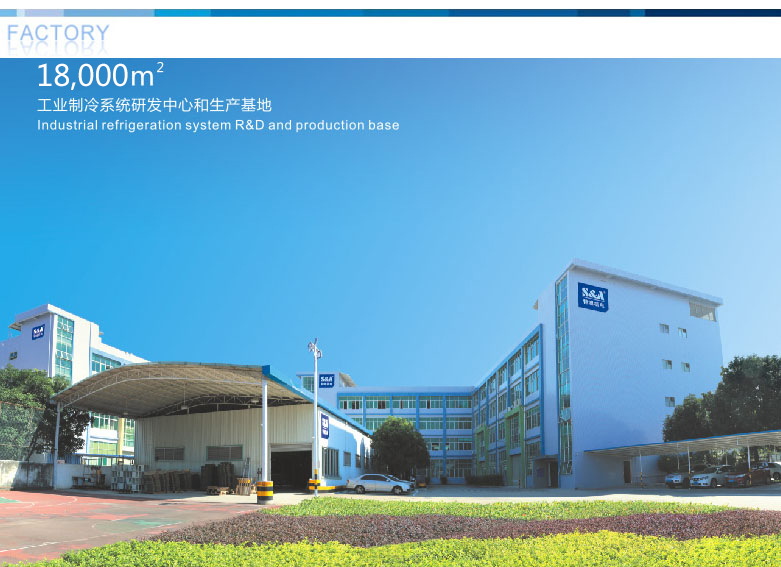

S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18,000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:1. With 11 patent certificates，CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Annual output 60,000 units, product exports rate above 60%；
3. Standard bulk production, standard parts rate up to 80% ；
4. With excellent laboratory testing system, simulates actual working environment for chiller.
