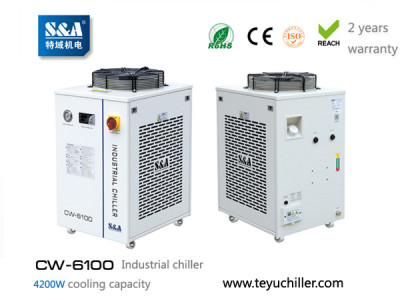

S&A industrial compressor refrigeration chiller CW-6100 factory
S&A chiller CW-6100 is developed and produced by S&A company. With 15 years development, gradually grow as the industry standard builder and quality guarantee. CW-6100 has 4.2KW cooling capacity, ±0.5℃ stability, and multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.
Most of parts of S&A chiller adopt standard injection molded parts to reduce water leakage and leakage of refrigerant and independent production of Chiller sheet metal: manufactured by IPG fiber laser cutting machine and welding manipulator. Higher than higher quality is always the aspiration of S&A.
Meanwhile S&A has excellent laboratory testing system, simulates actual working environment for chiller.
CW-6100 video: http://www.teyuchiller.com/Article/SAwaterchillerCW6100b_1.html
CW-6100 water chiller parameter:
Voltage:220/110V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a
Pump power: 0.05KW/0.1KW/0.37~0.75KW; Tank capacity:15L
Max. lift:12M/25M/28~53M; Max. flow: 13L/min- 70L/min
N.W: 65Kgs; G.W: 75Kgs;
Dimension : 67 X 47 X 89 cm (L X W X H); Packing dimension: 74 X 60 X 109 cm(L X W X H)
About S&A Brand
S&A(TEYU) was founded in 2002. After 15 years of development, the headquarter covers an area of 18,000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:1. With 11 patent certificates，CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warrenty
2.±0.1℃ high precision temperature control, stable cooling performance,support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Anual ouput 60,000 units,product exports rate above 60%；
3. Standard bulk production,standard parts rate up to 80% ；
4. With excellent laboratory testing system, simulates actual working environment for chiller.
