PIPE CRADLE MANUFACTURERS 24 inch to 60 inch pipe Cradles
Quality Pipe Cradles Manufacturers 24 inch to 60 inch pipe rigging, lowering and rolling Cradles.
Pipe Cradles are used as an effective method for supporting and rolling pipe at pipeline crossings or installations.
Our superior quality pipe cradles safely support, guide, and protect the pipe from damages during installation at worksites.
PIPE CRADLES-What is a Pipe Cradle
Cradles are designed and engineered for pipeline contractors to assist in line travel operations and safely laying or lowering of pipeline on the surface and into pipe trenches. The main features of Cradles are a heavy duty Crane lifting lug welded to heavy gauge pipe assembly called a Head Iron. The Rollers, polyurethane or other suitable polymers, are strung on wire rope loops and hung on the Head Iron. Pipes to be lowered or laid are passed through the loops and rolled forward. RHINOVEYORS manufacture quality pipe cradles for pipes ranging in diameter from 4 inch to 80 inch and load bearing capacity from 1 ton to 50 tons.
SINGLE HEAD IRON PIPE CRADLE
Single Head Iron
The assembly comprising heavy duty crane lifting lug and pipe with slots for holding wire rope slings with rollers is called a Head Iron. Head Irons are designed and manufactured to accomodate different diameters of line pipe from 4 inches to upwards of 80 inches and weighing between 1 ton and 50 tons. Head Iron design changes as the diameter and weight of the pipe changes. Head Irons used for pipes upto 24 inch in diameter and weighing 5-10 tons are known as Single Head Iron ( illustrated above ). Single Head Iron comprises of a crane lug welded to a single piece of pipe with slots at both ends to receive wire rope slings with rollers. There is always a single wire rope sling looped around the pipe to form a double loop.
DOUBLE HEAD IRON CRADLE

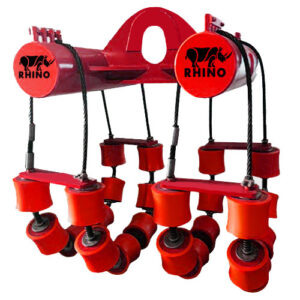

Double Head Iron
Double Head Iron is used when pipe diameters and weights increase and cannot be accomodated on a single head iron pipe cradle. Double Head Iron is essentially similar in design and construction to a single head iron with the difference of two parrallel pipes instead of a single pipe. The Crane lifting lug is positioned in the middle of the two pipes and connected and welded to both pipes.
| SIZE | PIPE WEIGHT | TOTAL NUMBER OF ROLLERS |
NUMBER OF CABLE STRANDS |
WIRE ROPE DIAMETER |
MAXIMUM RECOMMENDED WORKING LOAD |
|
|---|---|---|---|---|---|---|
| INCH | MM | KGS. | KGS | |||
| upto 12 | 300 | 1000 | 10 | 2 | 12 mm. | 4000 |
| upto 18 | 450 | 2000 | 10 | 2 | 12 mm. | 7000 |
| upto 24 | 610 | 5000 | 14 | 2 | 16 mm. | 15000 |
| upto 36 | 914 | 7000 | 20 | 4 | 18 mm. | 25000 |
| upto 48 | 1219 | 10000 | 28 | 4 | 22 mm. | 35000 |
| upto 60 | 1524 | 15-20000 | 28 / 36 | 4 | 25 mm. | 45000 |
PIPE CRADLE MANUFACTURERS 24 inch to 60 inch Cradles By using a pipe cradle with heavy-duty polyurethane rollers, the pressure on the pipe is proportionally distributed and the risks of damaging the pipe coating and egging problems are prevented. This is also due to multiple polyurethane rollers that are spaced equally to support the pipe evenly.
The polyurethane rollers easily move over the weld seams and do not hang up, which is time-saving and makes the process more efficient. The use of high-quality materials within the design results in maximum performance. Furthermore, our pipe cradles and roller slings are an effective way to move pipe. Finally, our pipe cradles are designed for pipeline installation projects, where pipes can be kept close to the ground for easier handling during installation. Our quality Polyurethane Wheels do not deform under the load of the pipe, as the high mechanical strength of the material easily sustains the pressure that is associated with the weight of the pipe. We offer our pipe cradles in a wide ranging to accommodate different pipe diameters and load capacities.
RHINOVEYORS WHOLESALE & EXPORTS
CELL: 058 101 6267
RETAIL AND DISTRIBUTION OFFICE: 06 743 9209
WHATSAPP: 058 101 6267
EMAIL: info@bakjam.com
WEBSITE: www.rhinoveyors.com
24 inch pipe rigging-pipe lowering cradle-Dual_Head_Roller_pipe Cradle-rhinoveyors–12 inch to 60 inch pipe rigging-pipe lowering cradle-Dual_Head_Roller_pipe Cradle-rhinoveyors 12 inch to 24 inch pipe rigging-pipe lowering cradles 5 ton to 50 ton pipe rigging-pipe lowering cradle-Dual_Head_Roller_pipe Cradle-rhinoveyors
Delivered Worldwide
RHINOVEYORS Cradles are delivered Worldwide in the shortest possible time and that’s not all, our prices will Amaze you ! Drop us a line…..
please view our website www.rhinoveyors.com for our pipe rigging rollers, pipe saddles, pipe clamps and other pipe support products. Email: info@bakjam.com
