PIPE CLAMPS SADDLES SUPPORTS SUPPLIERS

PIPE CLAMPS SADDLES SUPPORTS-WE OFFER COMPLETE FABRICATION SERVICES ONSITE OR OFFSITE FOR PIPE SUPPORTS FROM DN 100 TO DN 2000 PIPE DIAMETERS IN CARBON STEEL AND STAINLESS STEEL TO HELP PIPELINE CONTRACTORS LAY PIPELINES EFFICIENTLY AND ECONOMICALLY.

PIPE CLAMPS SADDLES SUPPORTS

PRODUCTION CAPACITY: PIPE RACKS UPTO 50 TONS PER MONTH IN CARBON STEEL.

PIPE CLAMPS SADDLES SUPPORTS-LOCAL MANUFACTURER OF

PIPE CLAMPS SADDLES SUPPORTS-LOCAL MANUFACTURER OF ALL SIZES OF PIPE SUPPORTS AND PIPE ACCESSORIES DN 100-DN 2000 SIZES AVAILABLE ON ORDER

PRODUCTION CAPACITY: PIPE SUPPORTS UPTO 10 TONS PER MONTH IN CARBON STEEL.

SADDLES SUPPORTS-LOCAL MANUFACTURER OF ALL SIZES OF PIPE SUPPORTS AND PIPE ACCESSORIES DN 100-DN 2000

SADDLES SUPPORTS-LOCAL MANUFACTURER OF ALL SIZES OF PIPE SUPPORTS AND PIPE ACCESSORIES DN 100-DN 2000

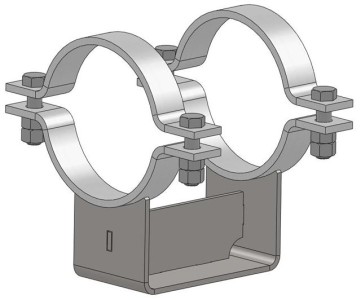

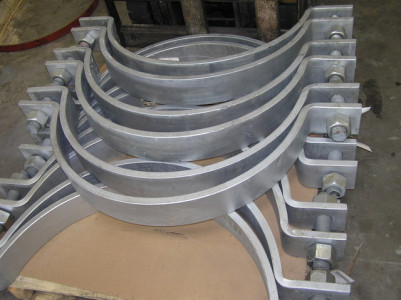

PRODUCTION CAPACITY: PIPE CLAMPS UPTO 10 TONS PER MONTH IN CARBON STEEL.

pipe-clamps-pipe-saddles-

pipe-clamps-pipe-saddles-pipe-supports-suppliers

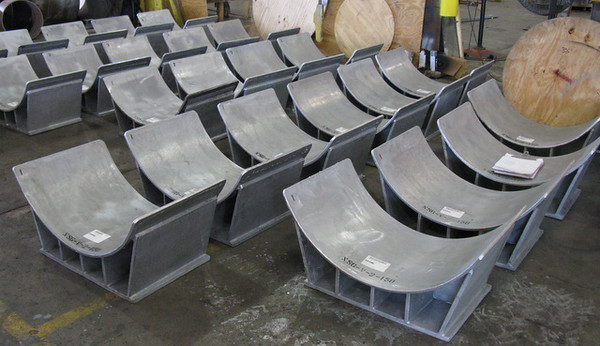

PRODUCTION CAPACITY: PIPE SADDLES AND PIPE SHOES UPTO 10 TONS PER MONTH IN CARBON STEEL.



PIPE SUPPORT TYPES AND PURPOSE:

PIPE CLAMPS SADDLES SUPPORTS-Piping supports play a crucial role in proper functioning and stability of piping systems. Pipe supports carry pipe weight with contents. To maintain the integrity of the piping system, A pipe must be supported following a proper span. we work closely with the design engineers on site to produce the best solutions to his pipe laying objectives, which are:

  • To prevent Pipe stresses in excess to allowable.
  • To eliminate the Leakages in joints.
  • To absorb Excessive Line Vibrations.
  • To counter the undesirable effects of Seismic, wind, water hammer, slug, and other dynamic loadings.
  • To remove unintentional disengagement (lift-off) of piping from its supports.
  • To prevent excessive pipe sag (Normally more than 10 mm for process piping and 2.5 mm for power piping; 12.5 mm for GRE/GRP piping)
  • To eliminate exposure of elements to temperature extremes, outside their design limit.
  • To limit undesirable line movements to protect sensitive equipment against overloading
    • To redirect pipe thermal movements to the favourable direction.
    • to reduce excessive loading in support itself

    For the proper working of the piping system, it has to be supported properly. The major purpose of pipe supports can be elaborated as follows:

    PIPE CLAMPS SADDLES SUPPORTS-Piping Supports for Carrying Weights

    Piping Supports to Take the ‘Thermal or Expansion Load’

    Pipe Supports transfer the Occasional Earth Quake Loads

    Pipe Supports transfer the Occasional Earth Quake Loads

    Take ‘Hydraulic Thrust in Piping’

    Piping supports absorb ‘Vibration of Piping System’

    Carry the ‘Occasional Wind Load’

    Support the System during ‘Transient Period of Plant & Standby’

    Piping Supports for ‘Noise Control’

    Support the System during ‘Maintenance Conditions’

  • Beam Attachments. A beam attachment is a type of forged or fabricated clamp that is used to attach rod hangers to beams by clamping onto the load flange. …

  • Clevis Hangers. …

  • Hardware. …

  • Rod Hanger Assemblies. …

  • U-Bolts. …

  • Hold-Down Pipe Clamps. …

  • Pipe Clamps & Risers. …

  • Pipe Saddles & Coverings.



PLEASE CONTACT US FOR YOUR NEXT PROJECT, YOUR  PIPE SUPPORTS AND SADDLES  NEEDS WILL BE TAKEN CARE OF.

06 743 9209

Cell 058 101 6267

info@bakjam.com

www.bakjamfabrications.com

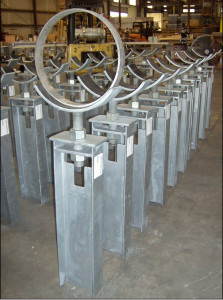

A pipe stanchion is a pipe support that is designed to stop movement in any direction and eliminate rotation in the system. These pipe supports prevent motion in all directions, so they keep piping from moving up, down, or sideways.

pipe support or pipe hanger is a designed element that transfer the load from a pipe to the supporting structures.

What Is a Pipe Stanchion Pipe Support?

A pipe stanchion is a pipe support that is designed to stop movement in any direction and eliminate rotation in the system. These pipe supports prevent motion in all directions, so they keep piping from moving up, down, or sideways. Overall, pipe stanchions are high-level rigid anchors that fix pipes in a solid foundation amid strong forces.

How Do Pipe Stanchions Work?

In most cases, you’ll want to install stanchion pipe supports underneath your system’s piping. From there, you can either weld the stanchion to a steel or concrete base or bolt the stanchion to your base. If you’re attaching the stanchion to a concrete base, you may want to add anchor bolts or a base plate to help keep your pipe supports stable.

How Do Pipe Stanchions Help Support Piping Systems?

Your piping system is constantly being pushed, dragged, and hit by both external and internal forces. Those forces are amplified—as is the potential damage—when you pile on the tremendous weight and friction that is pulling down on your piping. Here are a few forces your piping system is up against:

PIPE CLAMPS SADDLES SUPPORTS-Codes and Standards for piping support Design

The following codes and standards are used for piping support design.

  • MSS-SP-58- Establishes the material, design, and inspection criteria to be used in the manufacturing of standard pipe supports. (USA)
  • MSS-SP-69- Provides recommendations for the selection and application of pipe supports. (USA)
  • MSS-SP-89- Provides recommendations for the fabrication and installation of pipe supports. (USA)
  • BS-3974- Specification of pipe supports 1, 2, 3. (UK)
  • VGB-R-510 L- Standard supports guidelines. (Germany)
  • RCC-M- Specifications for pipe supports. (France)
  • MITI 501- Technical regulations (Japan)

PIPE CLAMPS SADDLES SUPPORTS-Pipe Weight

PIPE SUPPORTS FABRICATORS   DELIVERED 100’S OF TONS OF QUALITY STEEL PIPE SADDLES,CLAMPS, HANGERS AND PIPE SUPPORTS  TO SOME OF THE MOST PRESTIGIOUS PROJECTS IN DUBAI, ABU DHABI AND THE NORTHERN EMIRATES. BAKJAM FABRICATION WERE THE PIPE SADDLES FABRICATORS FOR THE SOWAH ISLAND PROJECT, ABU DHABI, WHERE 1000 TONS OF PIPE SADDLES AND PIPE RACKS WERE FABRICATED AND INSTALLED. WE UNDERTAKE DESIGN, FABRICATION AND INSTALLATION OF PIPE SADDLES, PIPE SUPPORTS, PIPE CLAMPS PIPE HANGERS PIPE RACKS  AND PROJECT STEEL FABRICATION PACKAGES.   EXCELLENT TRACK RECORD, LARGE TRAINED WORK FORCE AND AN ADEQUATE MACHINERY POOL ENABLES US TO SATISFACTORILY COMPLETE AND DELIVER PIPE SADDLES FABRICATION PACKAGES.    CONTACT US FOR YOUR NEXT PROJECT, YOUR  STEEL PIPE SADDLES, SUPPORTS  AND CLAMPS NEEDS WILL BE TAKEN CARE OF.
