PIPE SUPPORTS CLAMPS MANUFACTURERS
PIPE SUPPORTS CLAMPS MANUFACTURERS-WE HAVE DELIVERED 1000’S OF QUALITY PIPE CLAMPS, PIPE HANGERS, PIPE SADDLES AND PIPE SUPPORTS TO SOME OF THE MOST PRESTIGIOUS PROJECTS IN BAHRAIN-KUWAIT-QATAR-OMAN-DUBAI, ABU DHABI AND THE NORTHERN EMIRATES.
BAKJAM FABRICATION UNDERTAKES DESIGN, FABRICATION AND SUPPLY OF PIPE ROLLERS, PIPE SADDLES, PIPE SUPPORTS, PIPE CLAMPS, PIPE HANGERS AND PIPE RACKS .
PIPE SUPPORTS CLAMPS MANUFACTURERS-EXCELLENT TRACK RECORD, LARGE TRAINED WORK FORCE AND AN ADEQUATE MACHINERY POOL ENABLES TECHNOSMITHS TO SATISFACTORILY COMPLETE AND DELIVER PIPE ROLLERS AND SADDLES FABRICATION PACKAGES.
PIPE SUPPORTS CLAMPS MANUFACTURERS-PLEASE CONTACT US FOR YOUR NEXT PROJECT, YOUR PIPE CLAMP AND SADDLES NEEDS WILL BE TAKEN CARE OF.
PIPE SUPPORTS saddlesCLAMPS MANUFACTURERS EXPORTERS
06 743 9209
CELL: O58 101 6267
WHATSAPP: 050 632 8990
info@bakjam.com

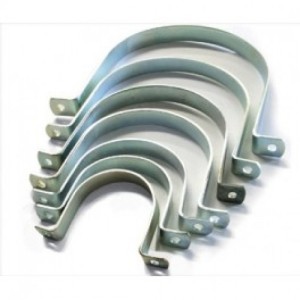

Pipe clamps – often referred to as pipe clips or sometimes saddle clamps are relatively simple fittings widely used in many DIY/installation settings. They’re one of the various types of channel support system, most commonly found in plumbing, heating, drainage and electrical work. MORE INFO
PIPE SUPPORTS CLAMPS MANUFACTURERS EXPORTERS-iii
1. Adjustable Pipe Clamps:
Mostly made from Steel, plastic, or aluminum, these types of piping clamps have the ability to adjust themselves as per the required pipe diameter. They can be easily tightened or loosened as per the pipe OD. As these types of pipe clamps can be universally used for different pipe diameters, they are cost-effective.
2. Cushioned Pipe Clamps:
Containing a cushioning material these type of pipe clamps helps in avoiding galvanic corrosion as metal to metal contact is prevented. Widely used for bare pipes, these pipe clamps shall be selected depending on the pipe temperature as the cushioning material should sustain that temperature.
3. Rigid Clamps:
Simple in construction, Rigid clamps are usually made from steel or iron. They are available as single body pipe clamps or two-piece pipe clamps and can easily be screwed.
4. U-bolts:
U-bolts are the most widely used type of pipe clamps. U-bolts are extensively used for small bore piping. They are used to work as rest+guide+hold down or rest+guide+hold down+line stop for small bore piping systems. For pipes with a diameter exceeding 8-inches, their application is reduced to a great extent as the piping loads increase with the increase in pipe sizes.

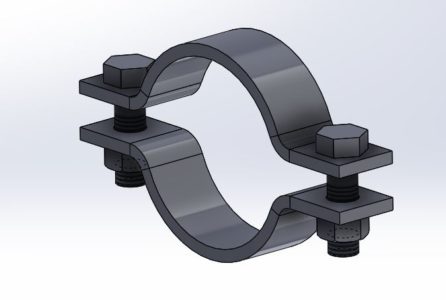

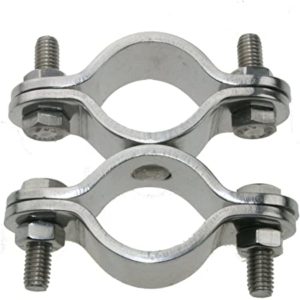

5. Two-Bolt Pipe Clamp:
Two-bolt pipe clamps are used for hanging bare pipes without any insulation. Their load carrying is capability is usually not large.
6. Three-Bolt Pipe Clamp:
Three-Bolt Pipe Clamps are used for suspending insulated lines carrying high-temperature fluids. The length of the clamps on top of the pipe is increased to accommodate the 3rd bolt which allows the attachment of the pipe clamp outside the insulation. The load-carrying capability of three-bolt pipe clamps is relatively higher than two-bolt pipe clamps.
7. Yoke-Type Pipe Clamp:
For hanging of high-temperature horizontal insulated pipes, yoke-type pipe clamps are used. These types of pipe clamps can easily support pipes with 4″ – 6″ insulation.
8. Riser Pipe Clamps:
Riser Pipe Clamps are used to support lines without the use of hanger roads. The pipe loads are transferred by resting both ears of the clamp on the floor or structural member.
9. Pipe Clips:
Also known as pipe straps, pipe clips are used to support horizontal or vertical lines by bolting the clip directly to a structure.
10. Heavy Duty Pipe Clamps:
Heavy-duty piping clamps are specially designed to support higher piping loads. Most of the pipe clamps are designed in both standard and heavy-duty variants to address different load requirements.
11. Extended Pipe Clamps:
In some applications, the bottom piece of the pipe clamp can be extended and configured to use as pipe supports. these types of piping clamps are known as extended pipe clamps
Pipe Clamp Materials
Pipe clamps are manufactured of a wide range of materials like:
- Carbon Steel
- Stainless Steel
- Plastic
- Copper
- Brass
- Aluminum
- Alloy Steel
- Chrome/Chrome-Plated pipe clamps, etc
FOR FURTHER INFORMATION ON OUR INDUSTRIAL PRODUCTS PLEASE VIEW OUR FOLLOWING WEBSITES;
PIPE CLAMPS SADDLES SUPPORTS-LOCAL MANUFACTURER OF ALL SIZES OF PIPE SUPPORTS
PIPE CLAMPS SADDLES SUPPORTS-Codes and Standards for piping support Design
The following codes and standards are used for piping support design.
- MSS-SP-58- Establishes the material, design, and inspection criteria to be used in the manufacturing of standard pipe supports. (USA)
- MSS-SP-69- Provides recommendations for the selection and application of pipe supports. (USA)
- MSS-SP-89- Provides recommendations for the fabrication and installation of pipe supports. (USA)
- BS-3974- Specification of pipe supports 1, 2, 3. (UK)
- VGB-R-510 L- Standard supports guidelines. (Germany)
- RCC-M- Specifications for pipe supports. (France)
- MITI 501- Technical regulations (Japan)
