CASING SPACERS FOR DN 100 TO DN 3000 PIPES

BAKJAM FABRICATION LLC MANUFACTURE WORLD CLASS PIPE CASING SPACERS FOR DN 100 TO DN 3000 PIPES FOR THE MIDDLE EAST PIPELINE CONTRACTORS UNDER ITS BRAND NAME RHINOVEYORS.
RHINOVEYORS ( TM ) HAS DELIVERED 1000’S OF QUALITY PIPE CASING SPACER  ROLLERS, PIPE CLAMPS, PIPE HANGERS AND PIPE SUPPORTS  TO SOME OF THE MOST PRESTIGIOUS PROJECTS IN THE MIDDLE EAST INCLUDING IRAQ, KUWAIT, OMAN, QATAR, SAUDI ARABIA, BAHRAIN AND AFRICA.

RHINOVEYORS  UNDERTAKES DESIGN, FABRICATION AND SUPPLY OF PIPE CASING SPACERS FOR DN 100 TO DN 3000 PIPES, END SLEEVES, PIPE SADDLES, PIPE SUPPORTS, PIPE CLAMPS,  PIPE HANGERS AND PIPE RACKS AS A ONE WINDOW SERVICE.

CASING SPACERS CARRIER PIPE QUALITY CASING SPACERS

EXCELLENT TRACK RECORD, LARGE TRAINED WORK FORCE AND AN ADEQUATE MACHINERY POOL ENABLES RHINOVEYORS TO SATISFACTORILY COMPLETE AND DELIVER PIPE CASING SPACERS AND SADDLES FABRICATION PACKAGES.   PLEASE CONTACT US FOR YOUR NEXT PROJECT, YOUR  PIPE CASING SPACERS  NEEDS WILL BE TAKEN CARE OF.

WHATSAPP: 050 632 8990
CELL 058 101 6267
info@bakjam.com

CASING SPACERS CARRIER PIPE QUALITY CASING SPACERS TOP QUALITY PIPE CASING SPACERS FOR DN 100 TO DN 2000 PIPES FOR THE PIPELINE CONTRACTORS

CASING SPACERS CARRIER PIPE  Roller Wheel Skid Casing Pipe Spacers – Stainless Steel Or Galvanized with wheel rollers RHINOVEYORS Casing Spacers / Insulators are used for protection of the carrier pipe when pulled or pushed inside a steel casing. PIPE CASING SPACERS FOR DN 100 TO DN 3000 PIPES Wheeled  pipe insulators / Spacers provide ease of installation of the carrier pipe inside the pipe casing, providing alignment. Carbon Steel or Nylon / Teflon two axis Casing Spacers are available for  lined pipe, or for steel pipe without liners. Rotational Casing spacers or rotational pipe supports, provide for pipe turning inside a casing pipe. RHINOVEYORS Roller Casing Spacers allow for planed incremental rotation of a pipe inside a casing to assist with wear scoring protection. Tailing pipe lasts longer after periodic turning procedures. Slurry and sand mixes wear the lower sections of hydro transport pipe systems.

Slide pipe support solutions are available for most pipe movement applications. Steel Casing Spacers with friction reducing wheel runners, and non-Metallic casing spacers with wheel runners may be used together on the same carrier pipe. Allowing wider spacing between units or used in longer casing runs. Roller wheel runners may be steel rollers or PE HD insulator wheels for pipeline corrosion protection. Stainless Steel Pump casing spacers with nylon wheel rollers, assist with pump placement and retraction. Nylon wheels reduce vibration and pump cylinder wear. The spacer legs may be sized in various lengths to accommodate the restriction requirements. All pump cylinder diameters and well casing diameters may be accommodated.

RHINOVEYORS Roller Wheel Skid Casing Pipe Spacers – Stainless Steel Or Galvanized with wheel rollers For Long casing runs, use friction reducing skid rollers  will determine which casing pipe spacer is best for the application.   PROJECT COORDINATION Contact us with a basic description of pipe sizing and other pertinent information for your project. RHINOVEYORS spacers come in two halves, assembled with galvanized bolts and nuts. The runners provide easy installation of the carrier pipe into the casing, providing proper alignment (centering, above or below center) of the carrier pipe in the casing to maintain the required gravity flow. Band Width: 200mm and 300mm wide clamp bands available. Wheels are non metallic for applications requiring isolation for corrosion protection . For combination solutions of steel and non-metallic casing spacers contact  with project details.

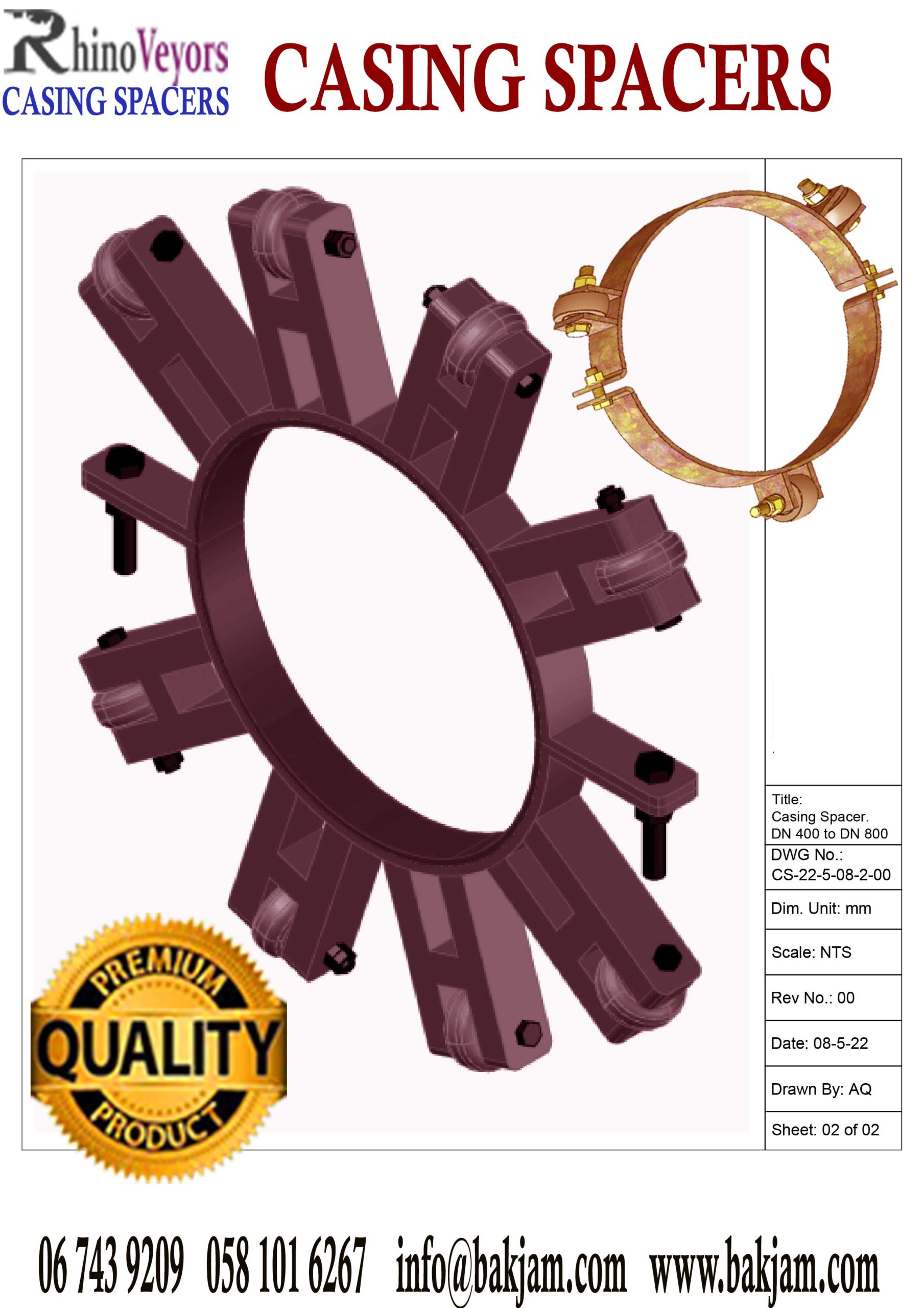

CASING SPACERS CARRIER PIPE QUALITY CASING SPACERS-III-G1

RHINOVEYORS Casing Spacers available for  lined pipe, Which provides Axial and Rotation rollers that allow pipe turning inside a casing pipe to prevent wear scoring. Our Casing Spacers can be clamp fasten on all types of pipes; PE, PVC, STEEL, DI or CONCRETE, for any diameter range. Casing Spacers protect against damages to pipe coatings. Casing Spacers are Installed without using specialized devices. Using two axis Casing Spacer the carrier pipe may be rotated inside a casing, extending the life of the piping transport system. Applications for Mining slurry, Oil Sand or  abrasive materials handling. Supports and hangers are used to secure all pipelines in a wide range of diameters . We supply very high strength systems to support or handle any pipeline structure in most metallic specifications.                         RHINOVEYORS Roller Wheel Skid Casing Pipe Spacers – Stainless Steel Or Galvanized with wheel rollers

RHINOVEYORS offers a proven solution with Casing Spacers to outperform the labor intensive, unreliable use of wooden skids.Casing Spacers center water and sewer pipes in casings with easy installation, are virtually corrosion proof, and provide insulating protection from a possible electrical shorting between the carrier pipe and casing pipe. No special tools or grease needed, and they are easily bolted on by a single worker.

BENEFITS OF RHINOVEYORS CASING SPACERS
